Merchandising Hierarchy

Introduction

Merchandising Hierarchy generally refers to the hierarchy of the goods for sale which, in our system, are generally the SKUs and these SKUs mapped to a particular category or sub-category in the system.

The user can create a hierarchy in the system where the user can map the subcategories to the categories and these categories are further mapped to a particular department in the system.

When a new SKU is created in the system, it is then mapped to the last hierarchy of the system i.e the sub-category of the SKU. These categories and sub-categories are defined by the user in the system using the Merchandising Hierarchy screen.

Following are the steps to create a new Merchandising Hierarchy in the system –

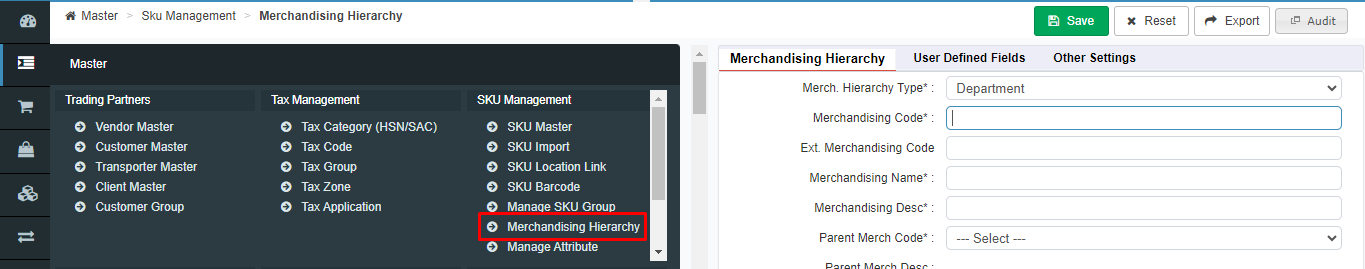

1. Click on Master module on the screen. Navigate to SKU Management and click on Merchandising Hierarchy.
2. A new tab will appear. Fill in all the details related to the Merchandising Type, Code, Name etc. the user wants to create.
3. Click on Save. The hierarchy will appear on the left side of the screen and the SKUs can be mapped to this screen.

Navigation: Master > SKU Management > Merchandising Hierarchy

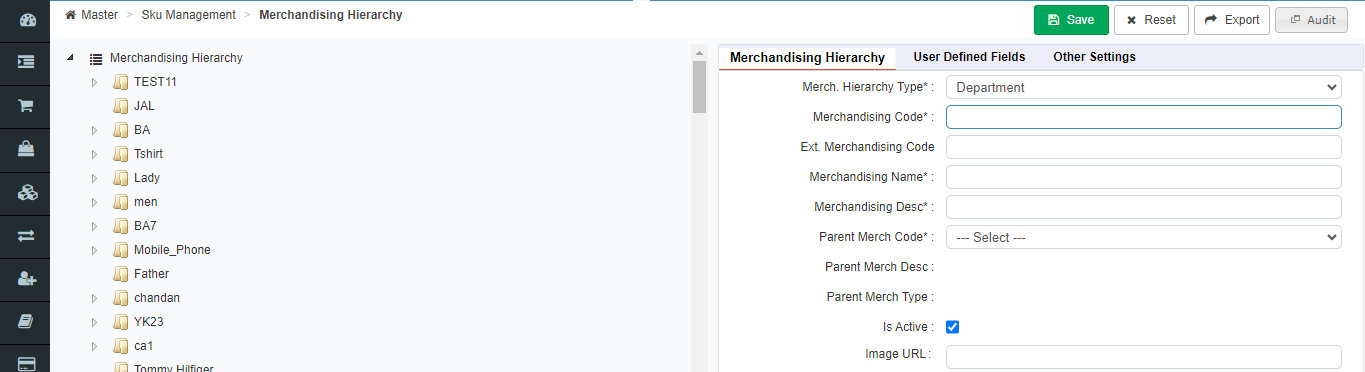

After clicking on the above-mentioned option, following screen will appear –

Here, the user can edit the existing hierarchy or create a new hierarchy all together. Detailed explanation to create a new hierarchy is shown below.

Action Buttons:

To add a new Hierarchy in the system, user can select and fill in all the required details in the system.

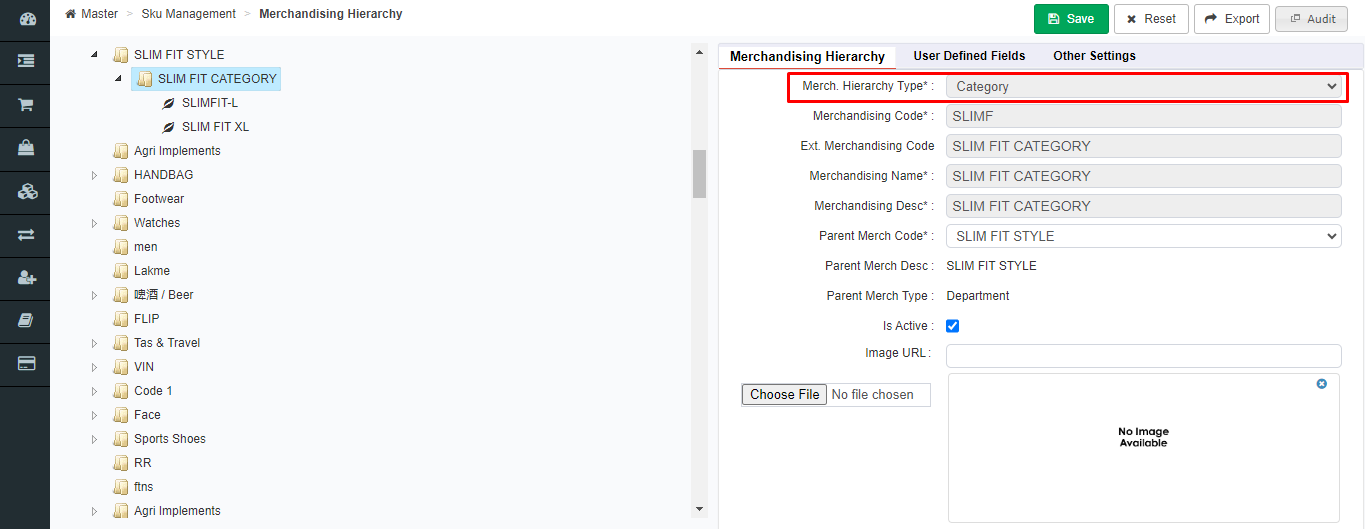

For example, if the user wants to create a new hierarchy with the Category as Home and Living and it needs to be mapped to Customer Electronics as the Department, user needs to create a category and fill in the details.

• Merch. Hierarchy Type: This is the type of Merchandising Hierarchy that the user wants to create. The user can select the type from the dropdown like the Department, Category and Sub-category.
• Merchandising Code*: This is the unique code associated with the type of hierarchy being created.
• Ext. Merchandising Code: This is the external merchandising code that is being pulled from any external system where the user wants to create the hierarchy in our system which is already present in any other system.
• Merchandising Name*: This is the unique name for the hierarchy being created.
• Merchandising Description: This is the description of the hierarchy being created in the system.
• Parent Merch Code*: This is the Parent Merch code that can be mapped to the categories or sub-categories being created. This parent code cannot be selected if the user wants to create a department in the hierarchy. The user can select the parent merch code from the dropdown list on the screen.
• Parent Merch Desc: This is the description of the Parent Merch Code selected by the user and is auto populated once the user selects the Merch code.
• Parent Merch Type: This is the type of the Parent Merch Code selected by the user and is auto populated once the user selects the Merch code.
• Is Active: This is a checkbox where the user can mark the hierarchy created as Active or Inactive.

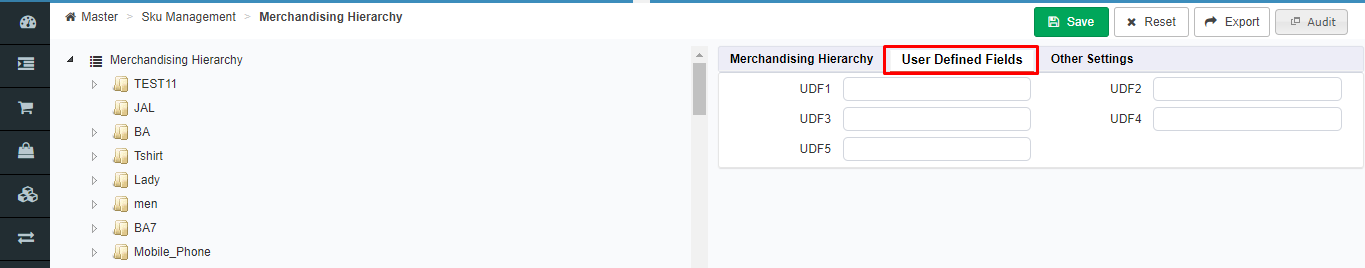

In the additional tab, the user can add User Defined fields to the SKUs being created in the system.

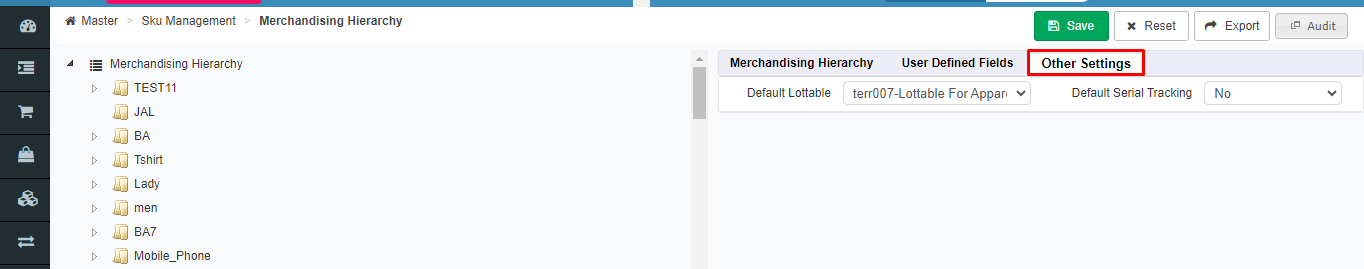

In the tab named ‘Other Settings’, the user can enable Default Lottable and Default Serial tracking for the hierarchy being created in the system.

After filling in all the required details, the user can click on Save and the hierarchy will be added to the system.

Similar steps are to be followed for creating a department and sub-category in the system.

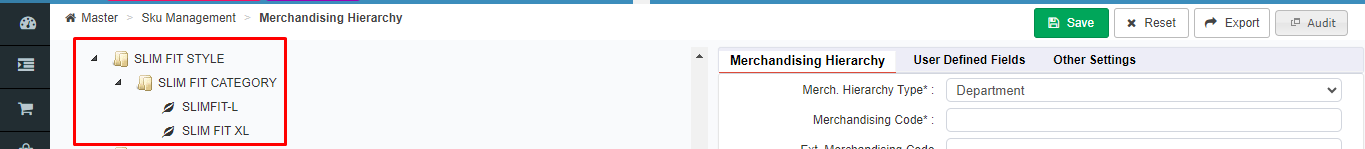

Considering the example above, this hierarchy with the following details can be shown in the left side of the screen.

Department: Consumer Electronics

Category: Home and living

Sub – category: Fans

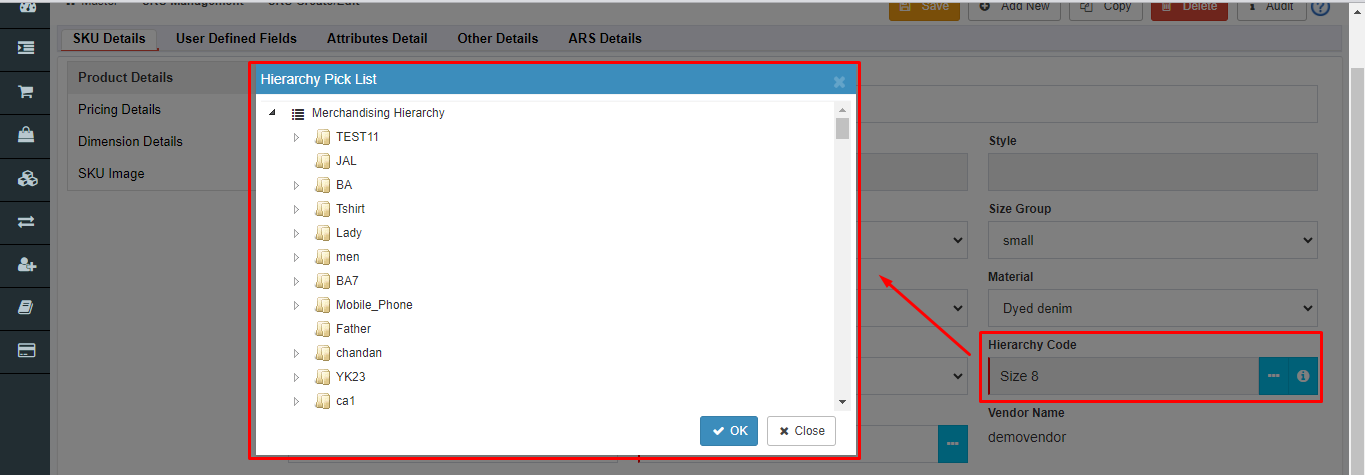

Once a hierarchy is made in the system, the user can map the newly created SKUs that belong to Fans as a sub-category through this Merchandising Hierarchy in the system.
